Wine Small Filter Press Sludge Dewatering Electro Hydraulic Plate And Frame Automatic

Name: Wine Small Filter Press Sludge Dewatering Electro Hydraulic Plate And Frame Automatic
Brand: Yuwei
Price: 1 USD

Quality Wine Small Filter Press Sludge Dewatering Electro Hydraulic Plate And Frame Automatic wholesale

Brand Name : Yuwei

Model Number : YWXAZ

Certification : CE / ISO

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 Unit per Month

Delivery Time : 10-20 work days

Packaging Details : Bubble Wrap/ Wooden Case

Name : Hydraulic Filter Press

Plate material : PP

Filter Plate Size : 630*630mm

Beam material : Q345

Closing Pressure : 18MPa

Plate Shifting : Manual

Closing Method : Automatic

Feeding Pressure : 0.6Mpa

Contact Now

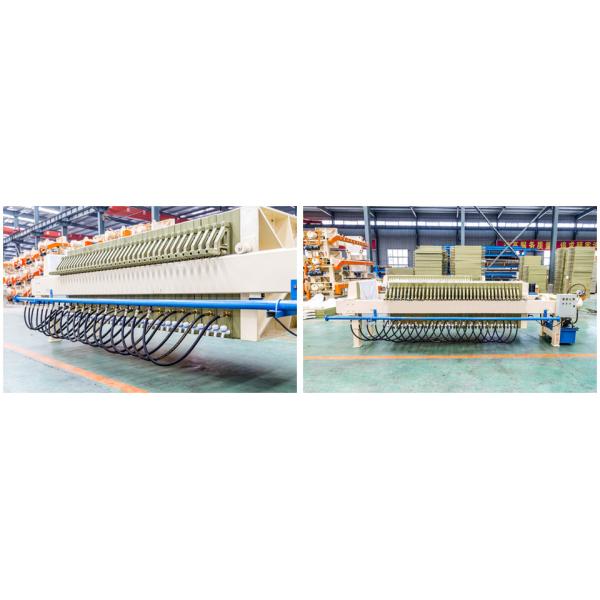

1250mm Membrane Chamber Filter Press Sludge Automatic

Product description

The 1250mm membrane chamber filter press is composed of a chamber filter plate and a membrane filter plate alternately combined to form a filter chamber, the filter cloth is fixed on each filter plate, good efficient and relatively durable filter plates, the degree of automation is high. The main advantage of the recessed membrane filter press is that it supports cake-squeezing function, lower cake moisture, uneasy damage of the filter plate. There is also an automatic device for cleaning the filter cloth that is selectable and the filter cloth is replaced less frequently.

Working principle

Specification

Model	Filter Area(m²)	Plate Diameter(mm)	Filter chamber volume	Plate NO.	Filtration pressure(MPa)	Dimensions(mm)
XMY4/450-30U	4	500 x 500	9	≥0.6	2.2	1950 x 700x 900
XMY6/450-30U	6		14			2200x 700 x 900
XMY8/450-30U	8		19			2450x 700 x 900
XMY10/450-30U	10		24			2700x 700x 900
XMY12/450-30U	12		29			2950x 700 x 900
XMY15/450-30U	15		36			3300x 700x 900
XMY16/450-30U	16		39			3450x 700 x 900
XMY15/630-30U	15	700 x 700	18			2640x 900x 1060
XMY20/630-30U	20		24			2940 x 900x 1060
XMY30/630-30U	30		37			3590x 900x 1060
XMY40/630-30U	40		49			4300x 900x 1060
XMY30/800-30U	30	800 x 800	28			3700x 1200x 1160
XMY40/800-30U	40		38			4300x 1200x 1160
XMY50/800-30U	50		47			4840x 1200x 1160
XMY60/800-30U	60		57			5440x 1200x 1160
XMY70/800-30U	70		67			6040x 1200x 1160
XMY30/870-30U	30	870x 870	23			3330x 1350 x 1250
XMY40/870-30U	40		30			3420x 1350 x 1250
XMY50/870-30U	50		38			4260x 1350x 1250
XMY60/870-30U	60		46			4700x 1350x 1250
XMY70/870-30U	70		54			5140x 1350 x 1250
XMY80/870-30U	80		62			5580x 1350 x 1250

Product display

Wine Small Filter Press Sludge Dewatering Electro Hydraulic Plate And Frame Automatic

Yuwei filter press advantages

High pressure press to reduces the moisture content of the filter cake.
Cake-squeezing function, minimize the cake moisture.
Hydraulic closing plates, automatic maintaining pressure.
Automatic plates shifting, save labor cost.
Automatic cake discharging, high efficiency.
Beam made of high quality carbon steel.
Plate made of reinforced polypropylene, long lifespan.
Simple structure and easy maintenance.

Application

Membrane chamber filter press is suitable for materials that conditions of difficult to dehydrate where customers have requirements on the moisture content of the filter cake, such as metallurgy, sludge, paper-making, medicine, food, brewing, fine chemicals and other industries.
